Continuous Positive Airway Pressure (CPAP) therapy is widely used for individuals suffering from sleep apnea and other breathing-related disorders. The effectiveness of CPAP therapy depends heavily on maintaining stable and consistent air pressure inside the mask throughout the night. Even minor leaks caused by mask misalignment, loose straps, or sleep movement can significantly reduce therapeutic efficiency.

While many CPAP machines internally regulate pressure, they often lack an independent and immediate external monitoring mechanism that clearly alerts the user when pressure drops occur. Our client approached us with a very specific requirement:

To design a simple, standalone, reliable CPAP mask pressure monitoring device that continuously tracks pressure levels and provides instant audible alerts if pressure falls below a safe threshold.

At Arduino Expert.com, we specialize in complete Product Design and Development, including electronics, embedded firmware, mechanical design, and functional prototyping. This CPAP Mask Pressure Monitoring Device project demonstrates our ability to deliver a fully integrated custom electronic product — from embedded system design to 3D enclosure modeling and 3D printing.

Custom CPAP Mask Monitoring Device Project Introduction

Continuous Positive Airway Pressure (CPAP) therapy is highly dependent on maintaining stable mask pressure. Even minor mask leaks during sleep can:

• Reduce therapeutic effectiveness
• Disrupt sleep cycles
• Cause discomfort and frustration
• Delay leak detection

Our client required a standalone CPAP mask pressure monitoring device that could:

• Continuously monitor pressure
• Detect pressure drops instantly
• Provide audible alerts
• Display real-time pressure values
• Operate independently of the CPAP machine

The device needed to be compact, user-friendly, and suitable for bedside use — making enclosure design just as important as electronics.

Components used in Arduino-Based CPAP Pressure Leak Detection System

The system was designed using a reliable embedded architecture built around:

• Arduino Nano/Uno Microcontroller
• Pressure Sensor (for airflow monitoring)
• 16×2 I2C LCD Display
• Audible Buzzer
• User Reset Button
• Custom Designed PCB Layout
• 3D Designed and Printed Enclosure

This combination allowed us to deliver a complete custom embedded healthcare device prototype.

Hardware & Embedded System Development

1. Pressure Monitoring Subsystem

A precision pressure sensor was integrated into the CPAP airflow path to capture real-time pressure values.

The Arduino continuously reads analog sensor data and converts it into meaningful pressure units. If the pressure drops below a predefined threshold, the system triggers an alert.

This reflects our strength in:

• Sensor Integration Engineering
• Analog Signal Processing
• Real-Time Embedded Firmware Development

2. Control & Processing Unit

The Arduino-based firmware handles:

• Continuous pressure sampling
• Threshold comparison logic
• LCD data updates
• Alert condition management
• Button interaction handling

The firmware was designed for deterministic behavior and reliable overnight operation — critical in healthcare-support electronics.

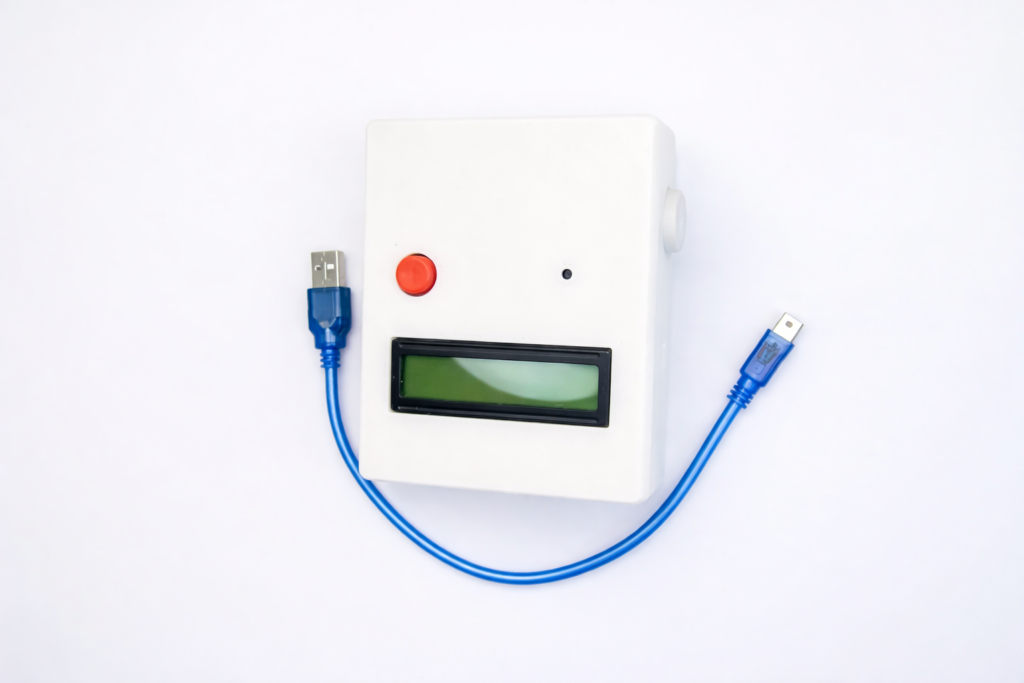

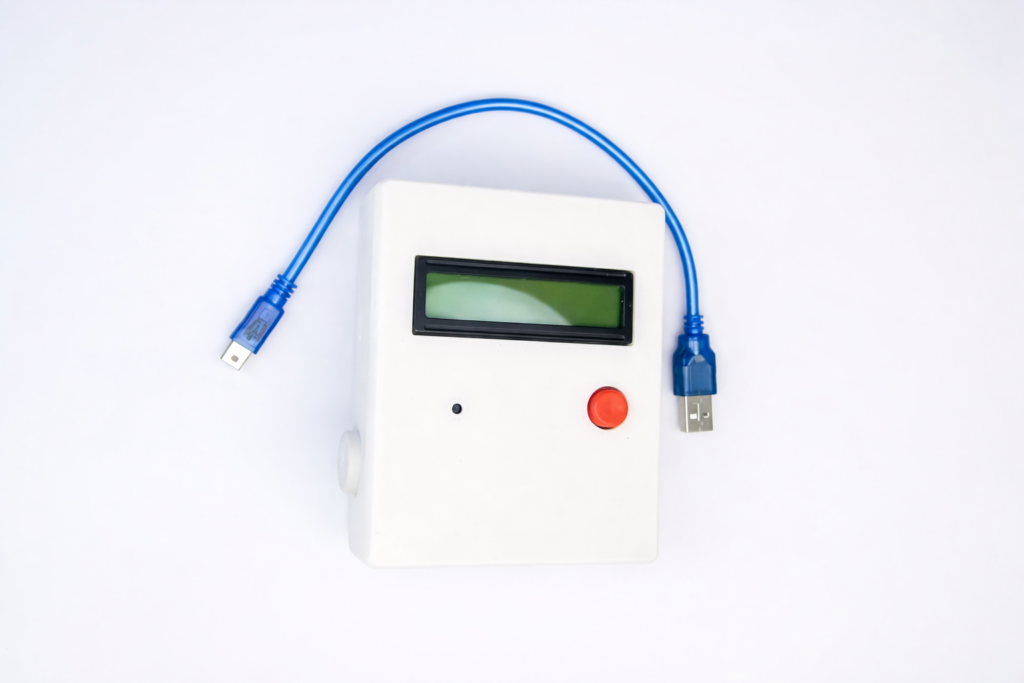

3. User Interface Design

1. 16×2 I2C LCD Display

• Displays live pressure values
• Shows alert state clearly
• Clean and readable interface

2. Audible Buzzer Alert

• Activates instantly on pressure drop
• Noticeable during sleep
• Continues until pressure is restored

3. Push Button

• Reset alert
• Acknowledge correction
• Simple single-button interaction

This minimalistic UI ensures ease of use — especially for non-technical users.

Checkout our Project: Smart Pressure Regulator System Using Arduino & Nextion Display

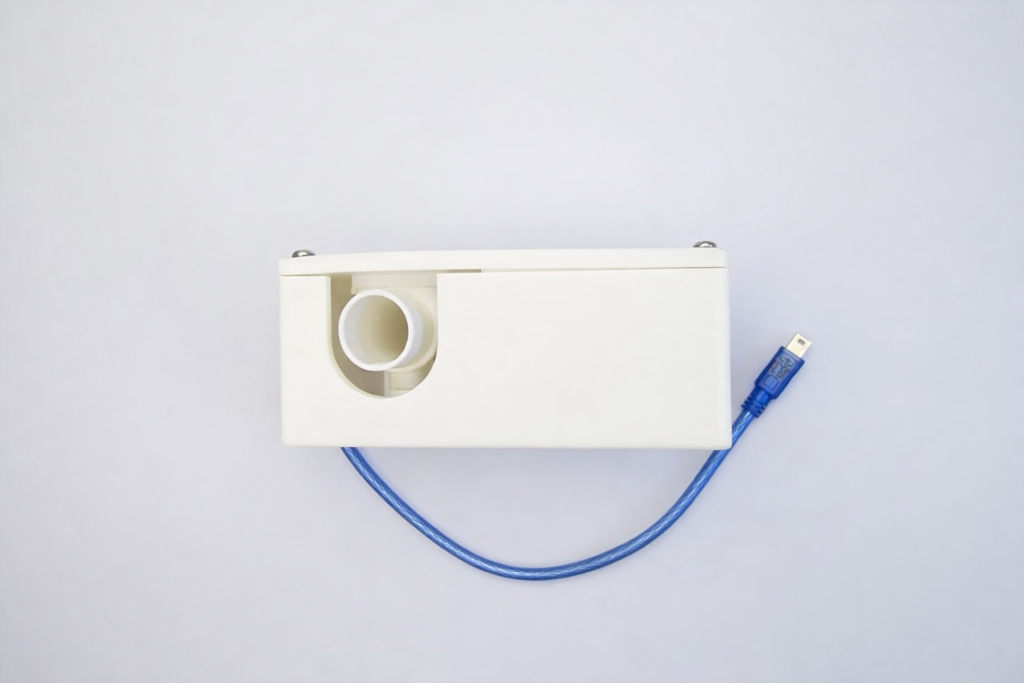

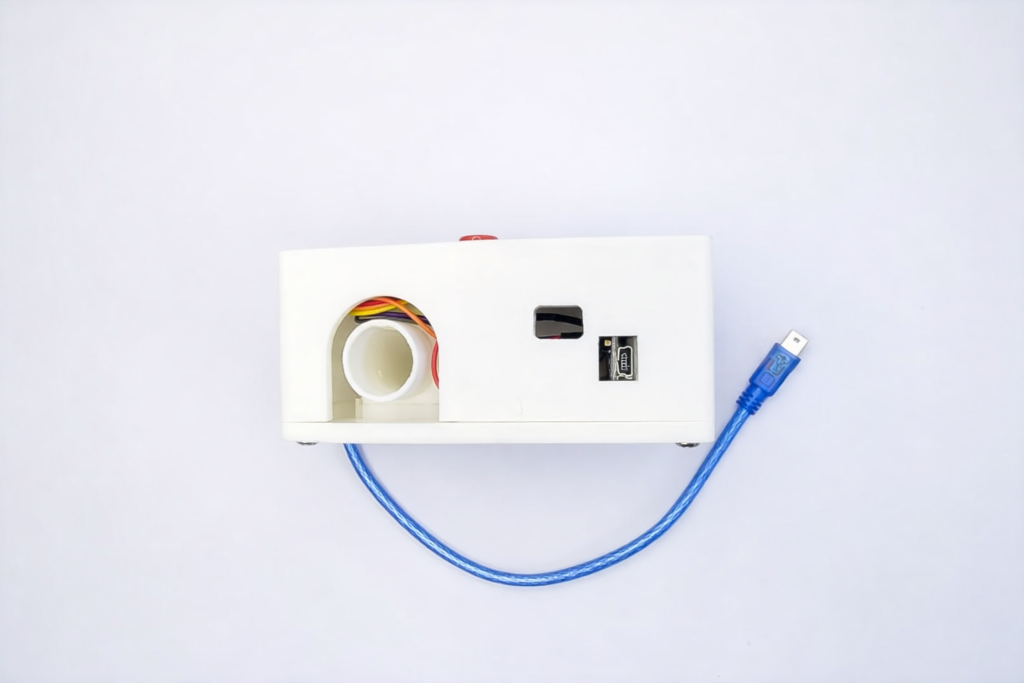

Enclosure Design & 3D Printing of CPAP Device

One of the most important aspects of this project was the custom enclosure design of Continuous Positive Airway Pressure (CPAP) Device. Since the device was intended for bedside use, it required:

• A clean, professional appearance
• Compact form factor
• Easy visibility of display
• Accessible reset button
• Proper ventilation and component mounting
• Secure housing for electronics

After CAD modeling, the enclosure was fabricated using high-quality 3D printing.

Benefits of 3D printed enclosure:

• Rapid prototyping
• Fast design iterations
• Functional validation
• Cost-effective small-batch production
• Real-world fit testing

The 3D printed casing provided:

• Secure housing of electronics
• Professional bedside appearance
• Compact and lightweight design
• Smooth external finish

Firmware Logic & Operation

Normal Mode:

• Live pressure displayed on LCD
• System continuously monitors airflow
• Buzzer inactive

Alert Mode:

• Pressure drops below threshold
• Buzzer activates immediately
• LCD displays warning
• Alert continues until resolved

The simple yet effective interface ensures usability for non-technical users.

Testing & Validation

The device underwent structured validation including:

• Simulated pressure drop testing
• Multi-cycle stress testing
• Enclosure durability check
• Display readability evaluation
• Button reliability testing

Both electronics and enclosure were tested as a complete product — not just as a circuit prototype.

Conclusion

The CPAP Mask Pressure Monitoring Device project reflects our capability to transform a real-world healthcare challenge into a fully engineered, functional product. From embedded system design to mechanical enclosure development, this project demonstrates our strength in delivering complete Product Design and Development solutions — not just circuit prototypes.

By integrating precision pressure sensing, reliable Arduino-based firmware, a real-time LCD interface, and an immediate audible alert mechanism, we developed a dependable standalone monitoring system that enhances CPAP therapy effectiveness. The device ensures early detection of mask leaks, allowing users to correct issues instantly and maintain consistent therapeutic pressure throughout the night.
