Project Overview || Arduino Smart Garden System

This Arduino-based smart garden automation system was developed to automatically control outdoor functions without requiring manual operation throughout the day.

turn garden functions on and off automatically,
use accurate time-based control,
manage garden lights, 10 sets of water sprinklers, and a music system,
follow a specific operating sequence,
and remain flexible for future enhancements.

Instead of relying on sensors, this project was built around a predefined schedule stored in the microcontroller, making it ideal for environments where predictable timed automation is preferred over sensor-based decision making. The design was intended to run without sensor input and to execute scheduled operations reliably through embedded control logic.

This made the project a strong fit for:

landscape automation,
timed irrigation systems,
outdoor ambiance control,
public or residential garden maintenance,
and embedded control systems for fixed daily routines.

Checkout Our Similar Project: Irrigation Scheduling and Water Pumps Control using Touch LCD and Arduino Uno

Client Requirements and Project Objectives

For this client project, the objective was not simply to switch devices on and off. The real challenge was to create an integrated embedded garden automation system that could handle multiple outputs in a coordinated sequence.

The main requirements included:

accurate real-time scheduling,
automated control of outdoor garden lights,
timed operation of multiple sprinkler zones,
integration of a music playback system,
relay-based power switching,
and efficient output expansion for multiple devices.

From an engineering standpoint, this required a blend of:

hardware design,
firmware logic,
relay interfacing,
power distribution planning,
and custom electronics project development.

Features of the Smart Garden Automation System

This custom Arduino Project included several functional automation features:

1. Real-time clock based scheduling

The system uses a DS3231 RTC module to maintain accurate date and time information independently of the Arduino’s internal timing. The DS3231 as a high-accuracy RTC module with temperature-compensated timing and battery-backed operation, making it well suited for schedule-based automation.

2. Automated garden lighting control

The project was designed to switch garden lighting on and off at programmed times. The garden lights were part of the timed automation requirements and were connected to the Arduino through relay control.

3. Multi-zone water sprinkler automation

A major feature of this project was support for 10 sprinkler sets, operated in sequence. The system was intended to control 10 water sprinklers using relay modules and a demultiplexer-based architecture.

4. Audio playback integration

The system also includes a DFPlayer Mini / MP3 module to play audio at scheduled times. The MP3 module was used as a music system, with songs stored on an SD card and played through an external speaker.

5. Flexible architecture for future upgrades

Several future improvement options can be done, including remote control, LCD display integration, touch interface scheduling, SSR relays, and improved music handling.

Components Used in Automated Sprinkler and Lighting Controller

This client solution demonstrates our capability in Custom Electronics Project Development and Embedded Systems Development through careful component selection.

Arduino UNO

The Arduino UNO as the main microcontroller used in the system because it is cost-effective, accessible, and suitable for implementation in this type of embedded control project.

DS3231 RTC Module

The DS3231 RTC provides accurate timing for daily scheduling. It communicates with the Arduino over I2C using the SDA and SCL pins.

Relay Modules

Three relay modules, including two 2-channel relay modules and one 8-channel relay module, allowing it to switch higher-power loads using Arduino control signals.

Demultiplexer Module

A 74154 demultiplexer was used to manage a larger number of outputs from fewer control lines, supporting the sprinkler-control architecture. Demultiplexer helps distribute output signals efficiently across multiple sprinkler lines.

DFPlayer Mini / MP3 Module

The DFPlayer Mini was used to support audio playback, with SD-card-based music storage and speaker output.

12V Power Supply and Wiring

The project used jumper wiring, breadboard distribution, and an external 12V DC power supply for the 8-channel relay section.

Checkout Our Similar Project: IoT, TubeWell Water Pump Control through SMS or Smartphone App from Anywhere

Working of Arduino Smart Garden System

The project uses a 24-hour scheduled control strategy rather than sensor-triggered automation. A programmed schedule is stored in the microcontroller, and the system then activates selected outputs at predetermined times.

reading time from the RTC,
enabling garden lights during defined hours,
switching music playback based on scheduled times,
and operating multiple sprinkler zones in sequence with fixed intervals.

A timed sequence and move through multiple zones using interval-based switching. The light logic appears to turn lights on in the evening and off later on schedule, while the audio routine toggles playback during a defined daily window. I would present this on the website as “scheduled light, irrigation, and audio automation,” rather than quoting exact times from the prototype code, because the sketch contains some draft-level inconsistencies.

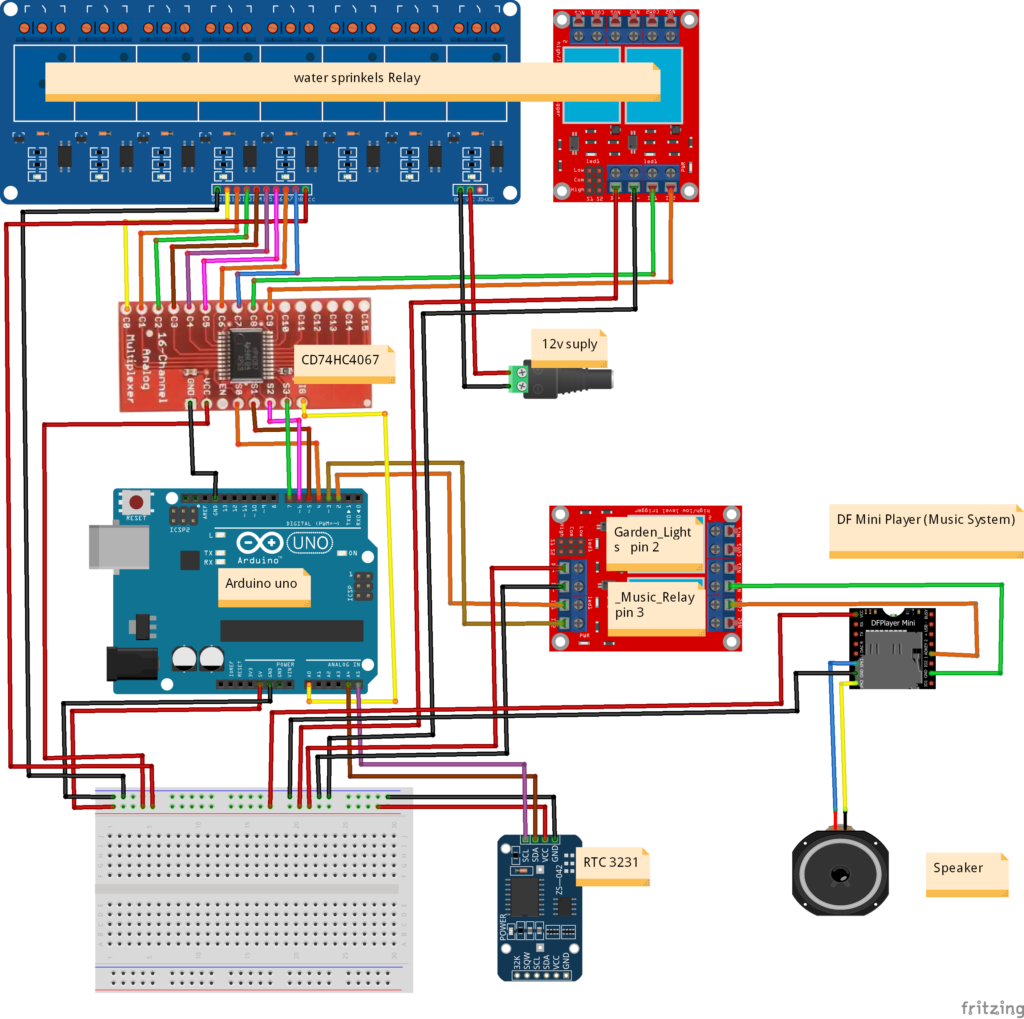

Circuit Diagram of Smart Garden Automation Project with Arduino

Code for Arduino Garden Automation System

#include <CD74HC4067.h>
  // s0 s1 s2 s3
  CD74HC4067 my_mux(4, 5, 6, 7);  // create a new CD74HC4067 object with its four control pins
  const int g_common_pin = A0;


  #include <DS3231.h>
  DS3231  rtc(SDA, SCL);
  String t, T, D, Date;
  int H, M, S, d, m, y;


  #define Garder_Lights_Relay 2
  #define Water_Sprnklr_S1    3
  #define pump     4
  #define lamp     5

  int interval=6;


  bool G_Lights = false, W_Sprnklr = false;
  bool Music=true;

  void setup ()
  {
    Serial.begin(9600);
    rtc.begin();
    // The following lines can be uncommented to set the date and time
    //rtc.setDOW(WEDNESDAY);      // Set Day-of-Week to SUNDAY
    rtc.setTime(16, 25, 0);      // Set the time to 12:00:00 (24hr format)
    // rtc.setDate(18, 05, 2022);   // Set the date to January 1st, 2014

    pinMode(Garder_Lights_Relay, OUTPUT);
    pinMode(Water_Sprnklr_S1, OUTPUT);
    pinMode(lamp, OUTPUT);
    digitalWrite(pump, HIGH);
    digitalWrite(lamp, HIGH);
    OFF_time += ON_time;
  }

Applications of Smart Garden Automation System

The Smart Garden Automation with Arduino and Audio Playback project has many practical uses in both residential and commercial environments. Because the system can automatically control garden lights, multiple sprinkler lines, and audio playback based on real-time scheduling, it can be adapted for a wide range of outdoor automation requirements.

Residential Garden and Lawn Automation

This project is highly suitable for homes, villas, and residential properties where automatic control of outdoor lights and irrigation can improve convenience and reduce manual effort. Homeowners can use this type of Arduino Project to maintain garden watering schedules, automate evening lighting, and create a better outdoor experience with scheduled audio playback.

Apartment Complex and Housing Society Landscaping

The project concept is suitable for apartment-style environments where a central control system can manage multiple outdoor functions. In such spaces, this Embedded Systems Development solution can be used to automate common-area garden lights, sprinkler zones, and ambient sound systems for landscaped sections.

Parks and Public Garden Automation

Public parks and managed green spaces often require routine irrigation and timed lighting. A system like this can help automate these tasks efficiently. The multi-zone sprinkler capability makes it a useful Custom Electronics Project Development solution for structured landscape maintenance where different watering zones need scheduled control.

Resorts, Hotels, and Outdoor Event Venues

Resorts, hotels, wedding lawns, and event venues can use this system to automate outdoor ambiance. Garden lights can turn on at the right time, sprinklers can be scheduled during non-visitor hours, and background music can be played automatically. This makes the project a practical example of Product Design and Development for hospitality and leisure environments.

Smart Landscaping and Outdoor Ambiance Control

This project can also be used for smart landscaping applications where aesthetics and automation are both important. By combining irrigation, lighting, and music in one controller, the system provides a more complete outdoor management solution compared to basic irrigation-only systems.

Educational and Prototype Development Applications

This project is also a strong demonstration model for students, researchers, and developers working in Arduino Project development, embedded automation, and custom control systems. It can be used as a learning platform for real-time clock interfacing, relay control, multi-output switching, demultiplexer integration, and audio module control.

Commercial Embedded Automation Products

With further improvement, this prototype can be converted into a commercial-grade automation controller. future upgrades such as Wi-Fi-based control, LCD display integration, touch-based scheduling, and improved switching methods, making it a promising foundation for advanced Embedded Systems Development and smart product design.

Future Enhancements

We can add following enhancements

using a Wi-Fi-enabled microcontroller for remote control,
adding an LCD module for system status display,
adding a touch display for schedule setting,
using SSR relays for faster switching,
and improving music playback features.
prototype-to-production development,
firmware upgrades,
IoT enablement,
HMI development,
and smart automation product scaling.

Conclusion

The Smart Garden Automation with Arduino and Audio Playback project is a successful example of how a custom embedded control system can automate multiple outdoor functions in a reliable and structured way. This client project was designed to manage garden lights, 10 water sprinkler lines, and a music playback system using accurate real-time scheduling through an Arduino UNO, DS3231 RTC module, relay modules, demultiplexer, and DFPlayer Mini.
