In today’s competitive market, interactive electronic products play a vital role in product engagement, user experience, and entertainment solutions. This project, Racing Cars Game with Arduino, is a custom-designed interactive game system developed as part of our Product Design and Development Services for a client.

The system features four racing cars running on a dedicated track, controlled and monitored using an Arduino-based embedded system. Each car is released by an individual player, and the first car to reach the finish line is declared the winner using limit switch detection.

This project demonstrates our expertise in Arduino Projects, Arduino Project Services, custom electronics design, and end-to-end product development, from concept to functional prototype.

Arduino Racing Cars Game Project Overview

The Arduino Racing Cars Game is a multi-player interactive racing system where:

• Four players compete simultaneously
• Four racing cars move along a physical track
• Each car corresponds to one player
• The first car to reach the finish line triggers a limit switch
• Arduino instantly identifies the winner

The project was developed as a client-specific product, focusing on reliability, fairness, responsiveness, and scalability, which are essential aspects of professional product design and development. If you want to explore our Bomb Puzzle Game Project, please click here.

Working Principle Arduino Racing Cars Game

→Player Input & Car Release

• When the race starts, all four cars are released simultaneously or individually, depending on game logic.
• Cars move along a predefined racing track using gravity-based mechanisms.

→Track End Detection Using Limit Switches

• Four limit switches are installed at the end of the racing track, one for each lane.
• When a car reaches the finish line, it presses its respective limit switch.
• The limit switch sends a digital signal to the Arduino.

→Winner Detection Logic

• Arduino continuously monitors all four limit switches.
• The first switch to be triggered is registered as the winner.
• Once a winner is detected:
  • The race is locked to prevent false triggers
  • The winning lane/player is identified
  • Output action display can be activated

This logic ensures accurate, real-time winner detection, which is critical for interactive gaming products

→Winner Display Using TM1637 7-Segment Module

To make the racing game more engaging and professional, we integrated a TM1637 4-digit seven segment display for real-time race result visualization. This display plays a crucial role in winner announcement and position tracking, which is a key requirement in interactive product design and development.

Instead of showing only the winner, the TM1637 display presents the complete finishing order of all four racing cars, providing a clear and intuitive race outcome for players..

Key Features of the Racing Cars Game

• Four-player competitive racing game
• Real-time winner detection using limit switches
• TM1637 seven segment display for race position output
• Arduino-based embedded control system
• Expandable design (display, sound, score tracking)
• High reliability and fast response
• Custom-developed for client requirements
• Ideal example of interactive product prototyping

Components Used in 4-Player Racing Cars Game

Race Result Logic Using TM1637 Display

Each racing car is assigned a unique number based on its lane:

• Car 1
• Car 2
• Car 3
• Car 4

When the race starts, Arduino continuously monitors the four limit switches installed at the finish line. As each car reaches the end of the track and presses its respective limit switch, Arduino records the exact finishing sequence.

The recorded order is then displayed on the TM1637 seven segment display.

→Example Output Explanation

If the TM1637 display shows:

4132

It means:

• Car 2 finished 1st (Winner)
• Car 4 finished 2nd
• Car 1 finished 3rd
• Car 3 finished 4th

This method provides an instant, easy-to-understand ranking system, eliminating the need for additional screens or complex interfaces.

Client-Based Product Design and Development

This project was developed as part of our custom Product Design and Development Services, tailored to the client’s vision for an interactive racing game. Special attention was given to:

• Durability of hardware
• Clean wiring and enclosure design
• Accurate winner detection
• Smooth user experience

We offer similar Arduino Project Services for:

• Interactive games
• Exhibition models
• Educational kits
• Amusement systems
• Custom electronics products

If you want to Make Pinball game with Arduino then you can also explore our Arduino Pinball Game Project.

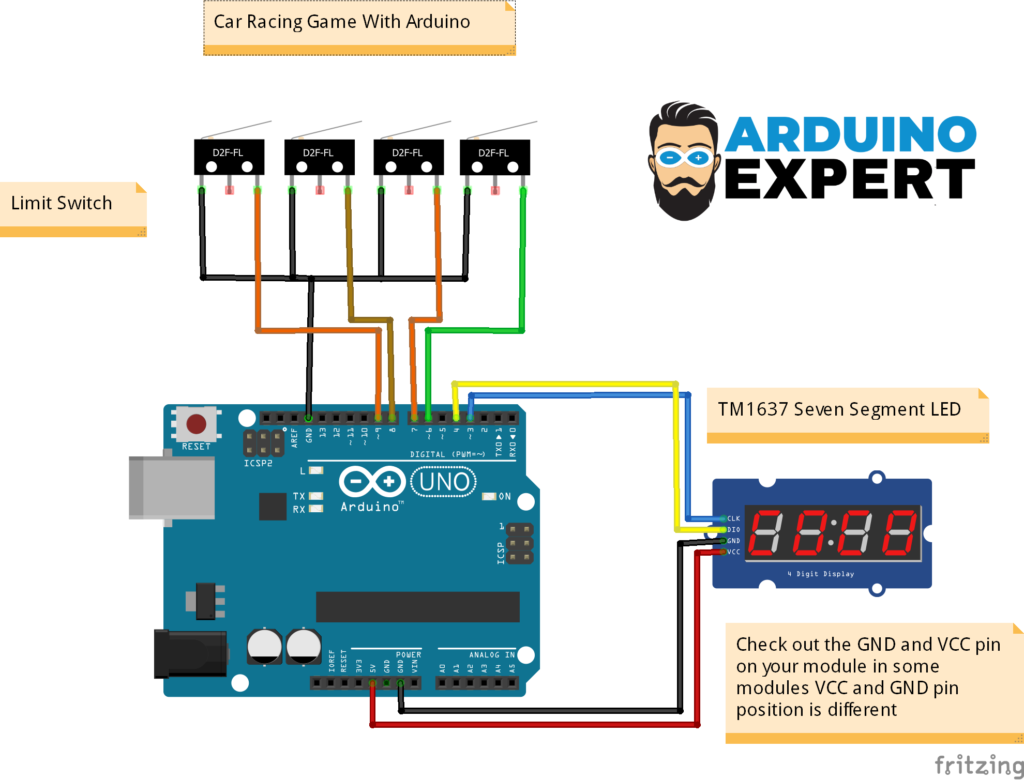

Circuit Diagram of Arduino Based Racing Game System

Arduino Code for Racing Track Game Project

#include <Arduino.h>
#include <TM1637Display.h>

// Module connection pins (Digital Pins)
#define CLK 3
#define DIO 4


TM1637Display display(CLK, DIO);

int A = 0, B = 0, C = 0, D = 0;
uint8_t data[] = { 0x00, 0x00, 0x00, 0x00 };
uint8_t blank[] = { 0x00, 0x00, 0x00, 0x00 };

int Switch_1 = 9;
int Switch_2 = 8;
int Switch_3 = 7;
int Switch_4 = 6;

bool lock_1 = true;
bool lock_2 = true;
bool lock_3 = true;
bool lock_4 = true;

int position = 0;

int numbers[4] = { 0, 0, 0, 0 };

void setup() {
  Serial.begin(9600);
  pinMode(Switch_1, INPUT_PULLUP);
  pinMode(Switch_2, INPUT_PULLUP);
  pinMode(Switch_3, INPUT_PULLUP);
  pinMode(Switch_4, INPUT_PULLUP);

  display.setBrightness(7);
  display.clear();
}

Applications of the Arduino Racing Track Game Project

• Amusement and arcade gaming systems
• Exhibition and trade show attractions
• Educational STEM learning kits
• Interactive product demos
• Science museum installations
• Custom entertainment solutions

Conclusion

The Racing Cars Game with Arduino is a perfect example of how Arduino-based embedded systems can be transformed into commercial-grade interactive products. Developed as a client project, it highlights our strengths in Product Design and Development, Arduino Projects, and custom electronics services.

This project showcases how we convert ideas into working products, ensuring reliability, scalability, and engaging user experience.
