In modern automated systems, efficient money handling and real-time monitoring are essential for businesses that rely on coin-based transactions. Machines such as vending systems, arcade machines, parking meters, donation boxes, and laundromats often collect a large number of coins, making manual counting inefficient and prone to human error. To address this challenge, we developed a smart IoT Coin Counter Machine using Arduino UNO R4 WiFi as part of a Custom Electronics Project Development for our client.
The system uses an IR sensor module to detect every coin that passes through a slot. Each detection event is processed by the Arduino UNO R4 WiFi microcontroller, which increments the coin count and sends the updated information to a mobile application in real time. With the help of wireless connectivity, the collected coin data can be monitored remotely using platforms such as Blynk or a custom mobile dashboard.
The main objective of this project was to design a reliable, low-cost, and scalable coin counting system that eliminates the need for manual tracking while providing real-time data visibility. By leveraging the built-in WiFi capability of the Arduino UNO R4 WiFi, the system connects directly to the internet and transmits the coin count data to a cloud-based interface. This allows business owners or operators to monitor the coin collection status from anywhere using their smartphone.
Another important aspect of this project is its scalability and flexibility. The same architecture can easily be extended to support additional features such as coin denomination detection, revenue tracking, cloud data analytics, automated reporting, or integration with payment management systems. Because of this flexibility, the solution can be adapted for various industries that require automated coin counting and remote monitoring.
In the following sections, we will explore the working principle, hardware components, software integration, and real-world applications of this IoT-based coin counting system built with Arduino UNO R4 Wi-Fi.
IoT Coin Counter Machine Project Overview
The IoT Coin Counter Machine is a smart embedded system designed to detect and count coins automatically while providing real-time monitoring via the Internet.
Whenever a coin passes through the slot, the IR sensor detects the interruption and sends a signal to the Arduino UNO R4 WiFi microcontroller. The microcontroller processes the signal, increments the coin count, and sends the updated value to a mobile application dashboard.
Users can view the total number of coins collected remotely using their smartphone.
Key Features of the Coin Counter System
Real-Time Coin Detection
An IR sensor module detects each coin as it passes through the slot and triggers the counting process instantly.
IoT Wireless Monitoring
Using the Arduino UNO R4 WiFi, the system sends real-time data to the Blynk mobile app or custom IoT platform.
Mobile App Dashboard
Users can monitor the total coin count remotely, making the system ideal for automated businesses.
Accurate Coin Counting
The system ensures reliable counting with minimal error by detecting each coin individually.
Scalable Embedded System
The design allows further expansion, such as:
- Multi-coin denomination detection
- Revenue tracking
- Cloud data logging
- Analytics dashboard
Components Used in Coin Counter Machine
This Custom Electronics Project Development involved the following components:
- Arduino UNO R4 WiFi
- IR Sensor Module
- Coin Slot Mechanism
- WiFi Connectivity Module (built-in with UNO R4)
- Power Supply
- Mobile App (Blynk / Custom IoT App)
- Jumper Wires and PCB
Working Principle of the Coin Counter Machine
The working of the system is based on a simple but efficient sensor detection and microcontroller processing mechanism.
Step 1 – Coin Insertion
A user inserts a coin into the machine through a dedicated slot.
Step 2 – IR Sensor Detection
As the coin passes through the detection area, the IR sensor beam is interrupted.
Step 3 – Signal Processing
The Arduino UNO R4 WiFi receives the sensor signal and registers it as a valid coin event.
Step 4 – Counter Update
The internal counter variable increments the total coin count.
Step 5 – IoT Data Transmission
The updated count is transmitted to the mobile app dashboard via WiFi.
Step 6 – Real-Time Display
The user can see the total number of coins on the Blynk mobile application or custom IoT interface.
Software and IoT Integration
The system firmware was developed using the Arduino IDE, and IoT communication was handled through the Blynk platform.
Key software features include:
- WiFi connectivity using Arduino UNO R4 WiFi
- Sensor interrupt detection
- Coin count data processing
- Mobile dashboard integration
- Real-time cloud updates
This combination creates a powerful IoT-enabled Arduino project capable of remote monitoring and automation.

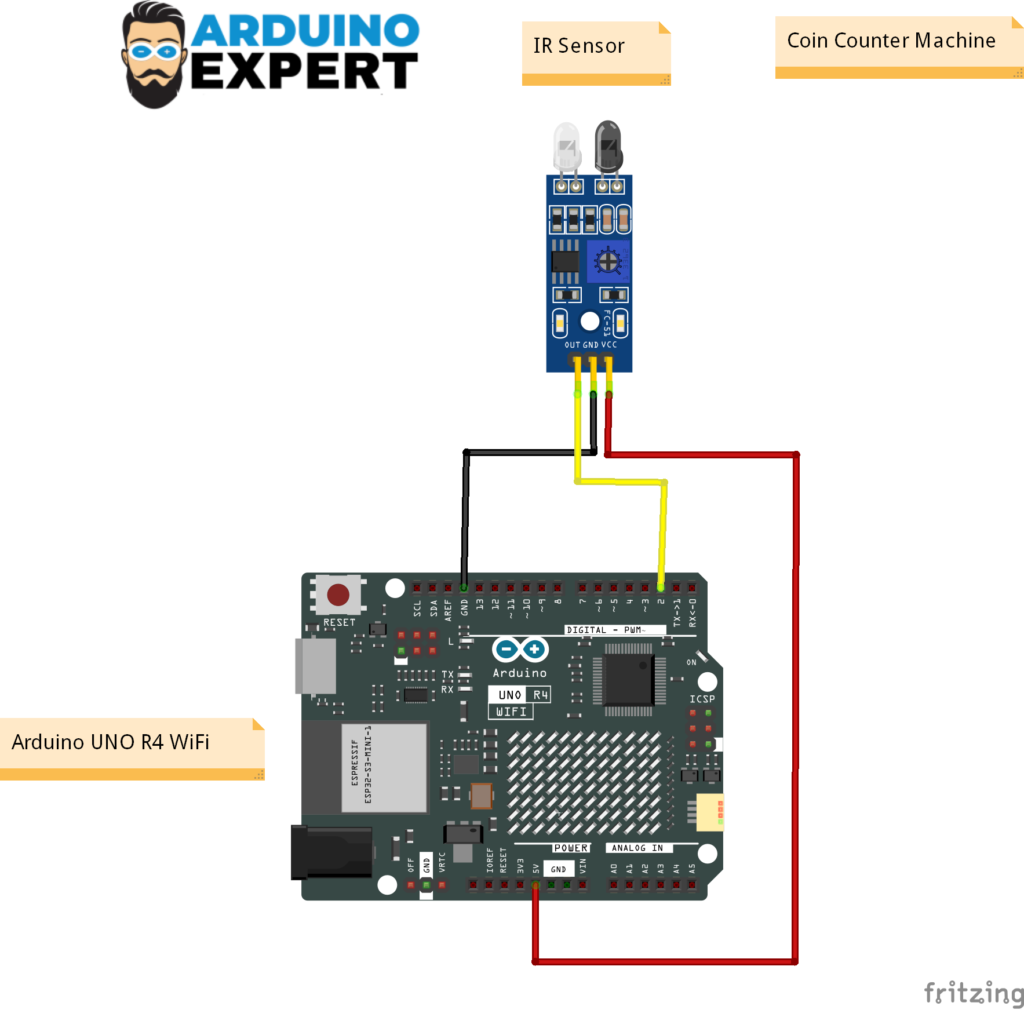

Circuit Diagram of the IoT Coin Counter Machine with Arduino UNO R4 WiFi
Applications of the IoT Coin Counter Machine
This Arduino-based IoT coin counter can be used in many real-world scenarios, including:
- Vending machines
- Parking payment machines
- Arcade game machines
- Laundry payment systems
- Donation boxes
- Public transportation ticket systems
- Coin-based entertainment systems
Businesses can benefit from remote monitoring, automated accounting, and data tracking.
Checkout Our Project: IoT – Bee Hive Weight Scale with Arduino
Arduino Code for Coin Counter Machine
#define BLYNK_TEMPLATE_ID "TMPL4vwXTRTBM"
#define BLYNK_TEMPLATE_NAME "Coin Counter"
#define BLYNK_AUTH_TOKEN ",,,,,,,,,,,,,,,,,,"
#include <SPI.h>
#include <WiFiS3.h>
#include <BlynkSimpleWifi.h>
// Your WiFi credentials.
// Set password to "" for open networks.
char ssid[] = "Umairphone";
char pass[] = "umair2442";
BlynkTimer timer;
const int irSensorPin = 6;
int counter = 0; // To store the count
bool objectPresent = false; // To track if an object is currently detected
