Measuring rotational speed (RPM) is a critical requirement in many industrial machines, motors, automotive systems, and electromechanical products. To address this need, we developed a custom RPM Monitor using a 555 Timer, Hall Effect Sensor, and Arduino UNO as part of our Product Design and Development Services for a client.

This project demonstrates a hybrid embedded system design, where analog signal conditioning using the 555 timer is combined with digital processing using Arduino. Such an approach improves signal reliability, noise immunity, and measurement accuracy—key requirements in commercial product development.

The system detects rotational speed using a Hall sensor, processes pulses through a 555 timer circuit, and calculates RPM using Arduino firmware. This solution highlights our expertise in Arduino Projects, Arduino Project Services, and custom electronics product development.

Arduino RPM Monitor Project Overview

The RPM Monitor measures the speed of a rotating object by detecting magnetic pulses generated by a Hall Effect sensor mounted near the rotating shaft. Each rotation produces a pulse, which is shaped and stabilized using a 555 timer configured in monostable mode.

The conditioned output pulses are fed into the Arduino UNO, which calculates the Revolutions Per Minute (RPM) using time-based pulse counting algorithms.

This project is suitable for real-world applications, client demonstrations, and scalable product designs.

Key Features of Arduino RPM Monitor Project

• Accurate RPM measurement
• Hall sensor-based non-contact sensing
• Noise-free pulse shaping using 555 timer
• Arduino-based digital processing
• Scalable and customizable design
• Client-specific product development
• Industrial and educational compatibility

Working Principle of Hall Effect Sensor RPM Monitor

Hall Effect Sensor – Speed Detection

• A small magnet is fixed to the rotating shaft.
• The Hall sensor generates a digital pulse each time the magnet passes in front of it.
• This creates a pulse train proportional to the rotational speed.

555 Timer – Signal Conditioning

The NE555 timer is used to:

• Eliminate noise and false triggering
• Convert irregular sensor pulses into clean, fixed-width signals
• Improve measurement accuracy at high RPM

Using analog conditioning before digital processing is a best practice in Product Design and Development, especially for industrial environments.

Arduino UNO – RPM Calculation

The Arduino:

• Counts pulses over a fixed time interval
• Converts pulse count into RPM
• Displays or transmits RPM values (via Serial, LCD, or display modules)

This separation of responsibilities improves system reliability and scalability.

Embedded Firmware Logic

The Arduino firmware:

1. Reads pulse output from the 555 timer
2. Uses interrupts or polling to count pulses
3. Calculates RPM using:

RPM = (Pulse Count × 60) / Pulses Per Revolution

1. Continuously updates RPM values

This approach is commonly used in professional Arduino Project Services.

Components Used in Arduino RPM Monitor Project

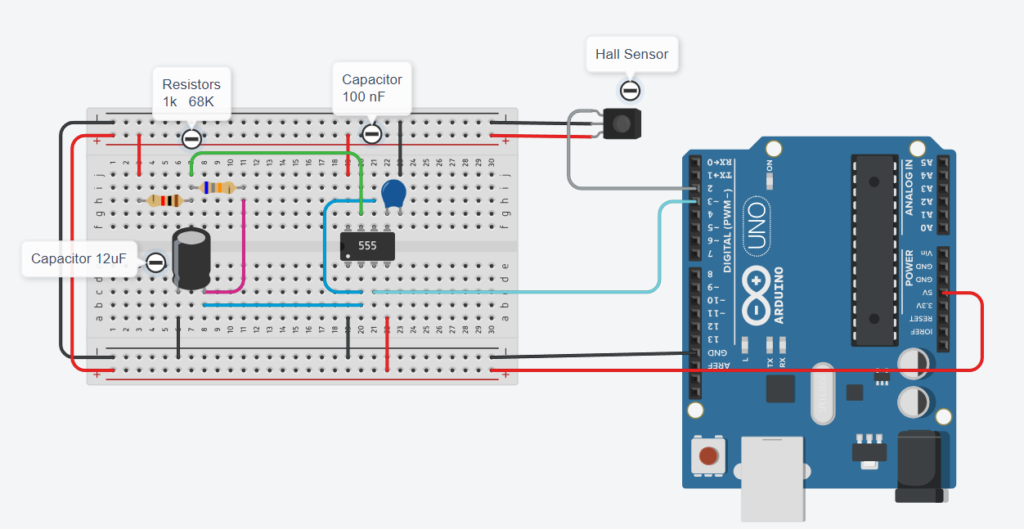

Circuit Diagram of Arduino with 555 Timer and Hall Effect Sensor

Arduino Code with RPM Measurement System


int Hall_Sensor = 2;
int NE555 = 3;
int count=0;

void setup() {
  Serial.begin(9600);
  pinMode(Hall_Sensor, INPUT_PULLUP);
  pinMode(NE555, INPUT_PULLUP);

  attachInterrupt(digitalPinToInterrupt(Hall_Sensor), Speed, FALLING);
  attachInterrupt(digitalPinToInterrupt(NE555), Pulse, FALLING);

}

void loop() {
}

void Speed() {
  count++;
}

void Pulse() {
  Serial.println((String) "Speed = "+count);
  count=0;
}

Applications of RPM Monitor

• Motor speed monitoring
• Industrial machinery diagnostics
• Automotive RPM sensing
• Conveyor belt systems
• Robotics and automation
• Educational labs and training kits
• Research and prototype development

Conclusion

The RPM Monitor with 555 Timer and Hall Sensor is a robust example of hybrid analog-digital embedded system design. Developed as a client project, it demonstrates how traditional analog components like the 555 timer can be effectively combined with Arduino-based digital processing for reliable, accurate, and scalable products.

This project reflects our expertise in Product Design and Development, Arduino Projects, and custom electronics engineering services.
