The goal of this project is to precisely control the opening and closing of a needle valve that regulates the flow of compressed air into a Model Steam Engine. By using a stepper motor and a microcontroller, we aim to provide fine-tuned control over the airflow, mimicking the steam regulation process found in real steam engines. This allows the user to simulate throttle control, optimize performance, and safely operate the engine using compressed air as a substitute for steam.
Components Used for Controlling Steam Valve:
| Component | Description |
|---|---|
| Arduino UNO | Acts as the main controller. |
| NEMA 17 Stepper Motor | Provides precise rotational control to adjust the needle valve. |
| DRV8825 Stepper Driver | Controls the stepper motor with microstepping capability and current control. |
| Needle Valve | A manually operable valve modified for stepper control. |
| 12V DC Power Supply | Powers the stepper motor and driver. |
| Rotary Encoder / Push Buttons (optional) | User interface for real-time valve position control. |
Working Principle of Steam Valve Control Project:
In a traditional steam engine, a needle valve controls the amount of steam (or in this case, compressed air) entering the piston chamber. This directly affects the engine’s speed and torque.
By connecting a stepper motor to the valve stem, we can precisely rotate the needle valve using digital signals from the Arduino UNO. The DRV8825 driver interfaces between the Arduino and the motor, converting step/direction signals into motor motion.
Through code, the valve can:
- Gradually open or close to a specific angle.
- Remain in a fixed position to regulate a constant flow.
- Be adjusted in real-time using inputs (like buttons or a rotary encoder).
This kind of digital control allows repeatable, safe operation of the steam engine model and enables automation or remote control if needed.
Working of System of Steam Valve Control System:
In a traditional steam engine, a needle valve controls the amount of steam (or in this case, compressed air) entering the piston chamber. This directly affects the engine’s speed and torque.
By connecting a stepper motor to the valve stem, we can precisely rotate the needle valve using digital signals from the Arduino UNO. The DRV8825 driver interfaces between the Arduino and the motor, converting step/direction signals into motor motion.
Through code, the valve can:
- Gradually open or close to a specific angle.
- Remain in a fixed position to regulate a constant flow.
- Be adjusted in real-time using inputs (like buttons or a rotary encoder).
This kind of digital control allows repeatable, safe operation of the steam engine model and enables automation or remote control if needed.

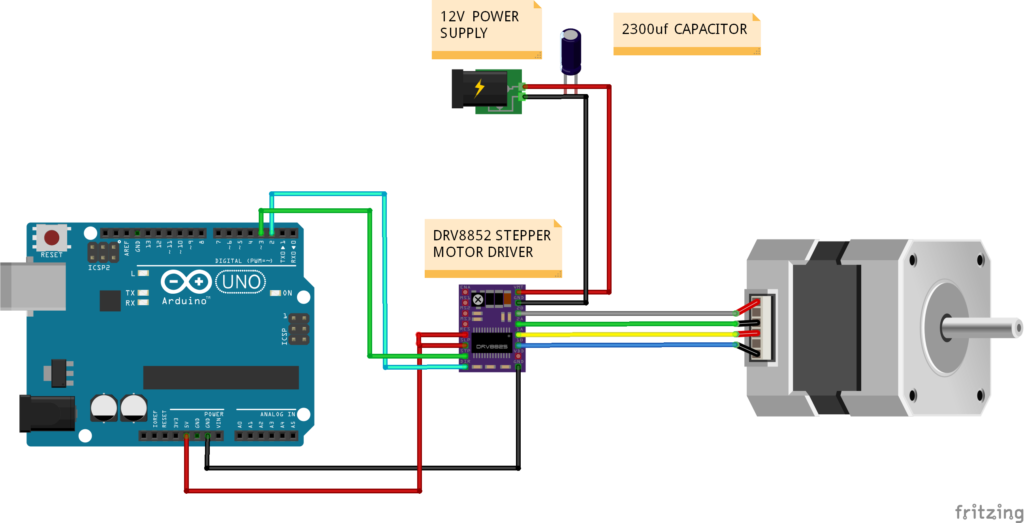

Circuit Diagram for Controlling Steam Valve with Arduino:
➤ Stepper Motor to DRV8825:
- A1, A2, B1, B2 → Connect to NEMA 17 coils (use datasheet to identify).
➤ DRV8825 to Arduino UNO:
- STEP → Arduino Digital Pin (D2)
- DIR → Arduino Digital Pin (D3)
- ENABLE → Arduino Digital Pin (e.g., D5 or GND if always enabled)
- VMOT & GND → 12V Power Supply
- VDD & GND → 5V and GND from Arduino
➤ 12V Power Supply:
- Powers VMOT on DRV8825 and can optionally power the Arduino through a step-down module or VIN pin.
Key Features and Benefits:
- High precision control of airflow using microstepping.
- Repeatable and programmable valve positioning.
- Safe operation of model steam engine with compressed air.
- Scalable design – can be integrated with sensors, pressure feedback, or remote control.
- Reduces wear on manual valve and allows automated operation for demonstrations or experiments.
Potential Enhancements:
- Add a pressure sensor to automate valve control based on pressure feedback.
- Use a rotary encoder for manual throttle control by user.
- Display valve position or pressure on an OLED or LCD screen.
- Add limit switches to detect fully open or fully closed positions.
- Integrate with Bluetooth or Wi-Fi module for remote valve control.
Conclusion:
This Arduino-based needle valve control system is a practical and educational project for anyone interested in steam engine modeling, mechatronics, or fluid control systems. It blends mechanical and electronic components to create a precise, programmable throttle system that mimics real-world steam engine control. The use of a stepper motor and DRV8825 driver enables fine control, making the system suitable for experimentation, demonstrations, or model engineering showcases.
